Studio Monitor
HOMEStudio MonitorDETAILS

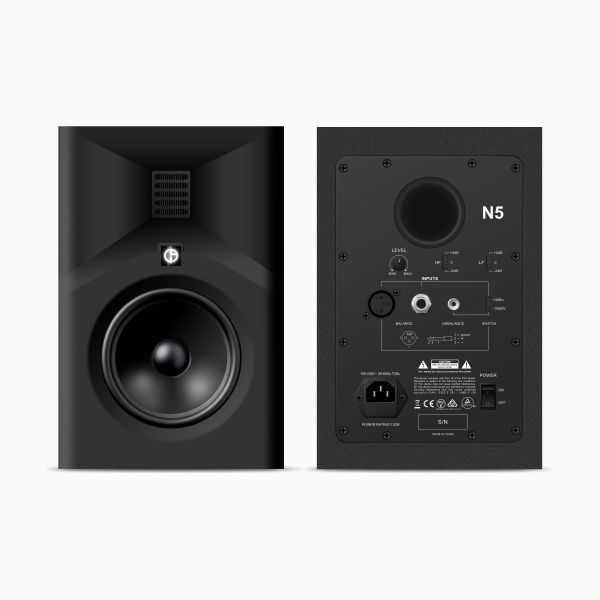

N5 / N7 / N8
2 Way Bi-amplified Near-field Studio Monitor

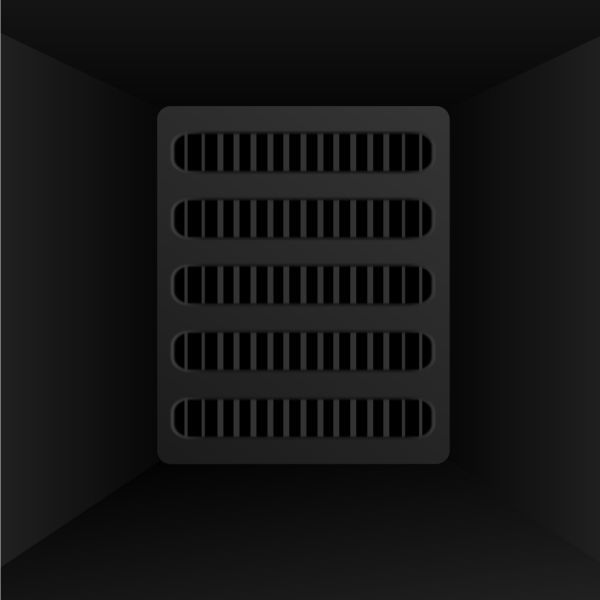

Equipped with Air Motion Transformer, provides pristine and extended high-frequency response up to 25 kHz.
The AMT tweeter is fitted to a precision waveguide, provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.
The wide frequency response, high dynamic range, excellent transient response, wide sweet spot make the V5/V7/V8 perfectly suited for use in your studio for music production.
TECH SPECS
| N5 | N7 | N8 | |
| Description: | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor | 2 Way Bi-amplified Near-field Studio Monitor |

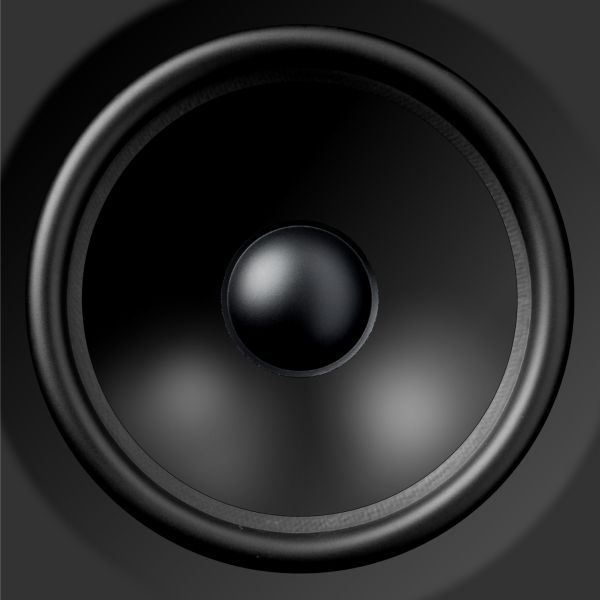

| LF Driver: | 5.25" | 7´´ | 8´´ |
| HF Driver: | Air Motion Transformer | Air Motion Transformer | Air Motion Transformer |
| Frequency Response: | 45 Hz - 25 kHz | 39 Hz - 25 kHz | 33 Hz - 25 kHz |
| Crossover Frequency: | 3.0KHz | 2.6KHz | 2.6KHz |
| LF Power AMP: | 50W Class D | 50W Class D | 70W Class D |
| HF Power AMP: | 20W Class D | 20W Class D | 20W Class D |

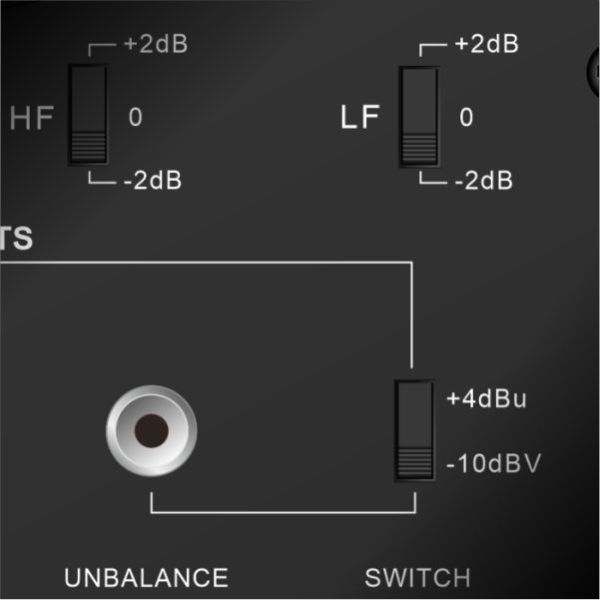

| LF Trim: | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB |
| HF Trim: | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB | -2dB, 0dB, +2dB |
| Sensitivity: | +4dBu, -10dBv | +4dBu, -10dBv | +4dBu, -10dBv |

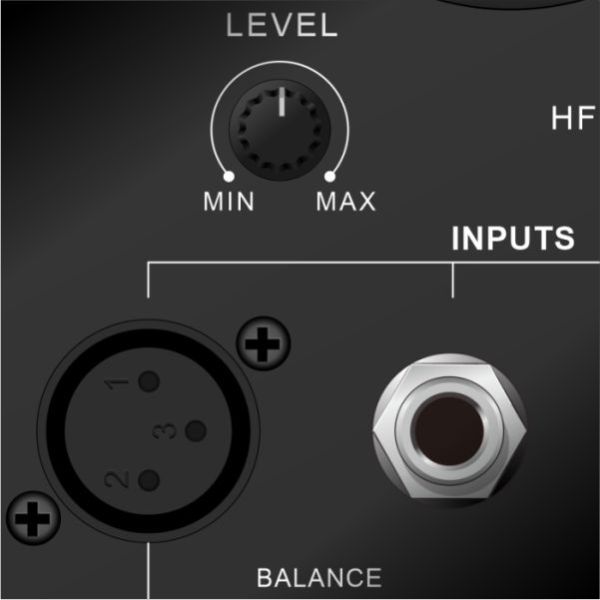

| Input type: | 1 xXLR, 1xTRS, 1 x RCA | 1 xXLR, 1xTRS , 1xRCA | 1 x XLR, 1x TRS, 1xRCA |

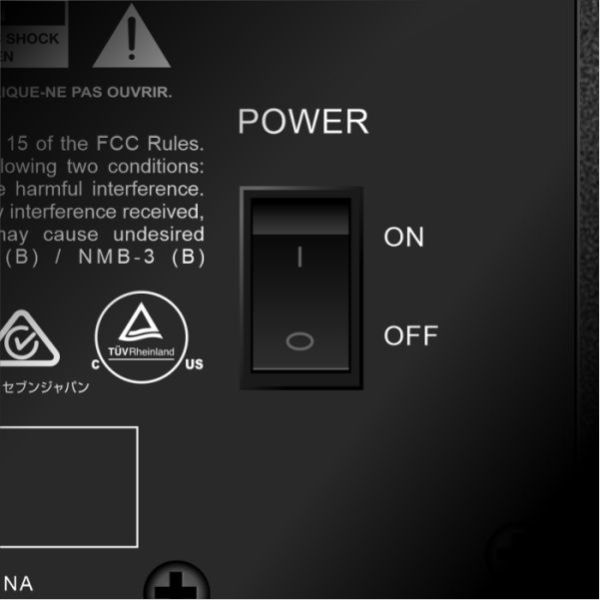

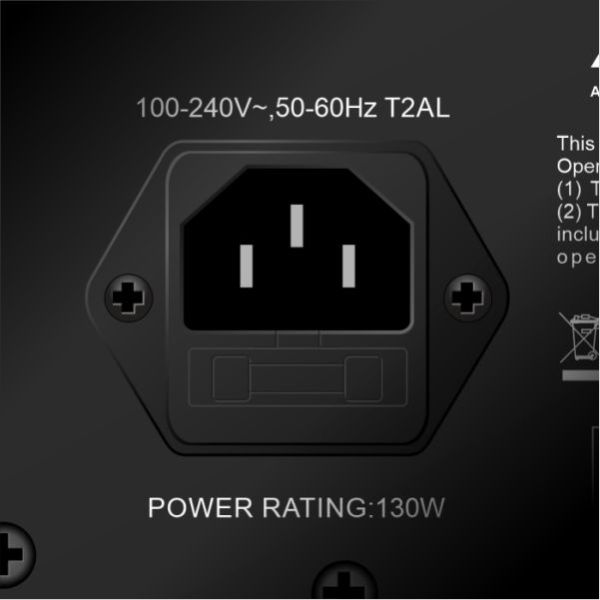

| Voltage: | 100-240V~, 50/60Hz | 100-240V, 50/60Hz | 100-240V,50/60Hz |
| Measurements: | W180xH288xD295mm | W220xH335xD295mm | W250xH398xD330mm |
