Studio Monitor
HOMEStudio MonitorDETAILS
H6 / H8 / H10
2-way active studio monitor

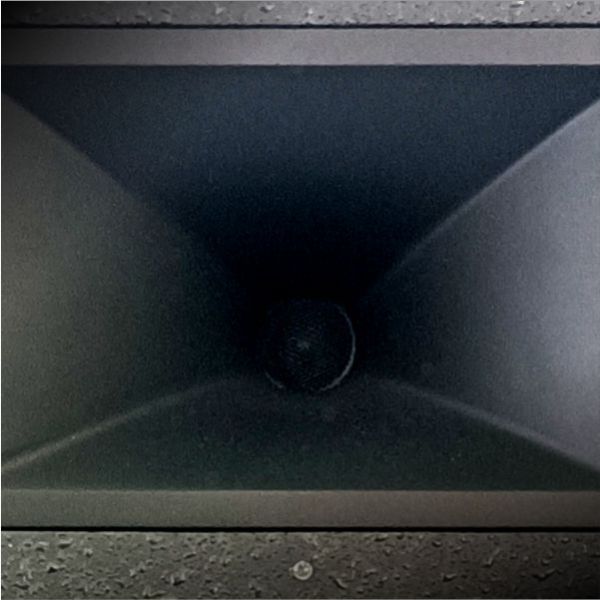

This 125 Watt, bi-amped active studio monitor featured an compression driver,

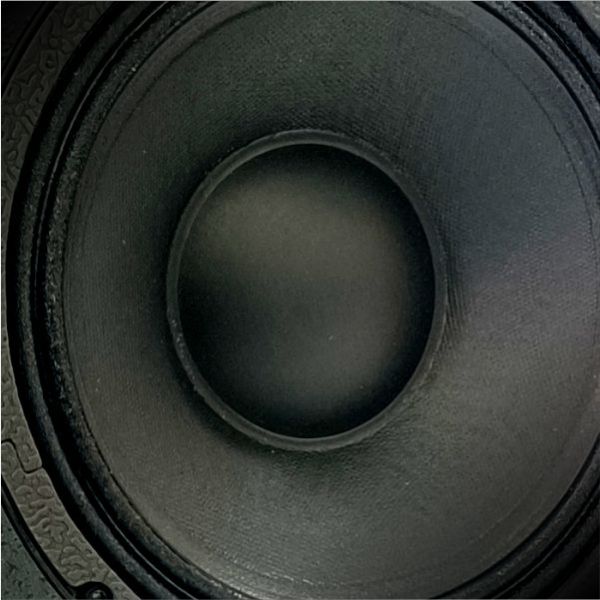

6.5’’/8’’/10’’ woofer, plays a remarkable trick of sounding huge.
The super high power helps the speaker deliver a bass performance that went well beyond that of its contemporary competitors, enables the tweeter to disperse sound in space with controlled consistency.
It has enormous clarity and displays all the subjective qualities of a much larger monitor working well within its limit.
It has a set of switchable filters that assisted the user in optimising the speaker for both room acoustics and positioning
TECH SPECS
| H6 | H8 | H10 | |
| Description: | 2-Way Active Studio Monitor | 2-Way Active Studio Monitor | 2-Way Active Studio Monitor |
| Woofer: | 6.5" Paper cone | 8" Paper cone | 10" Paper cone |
| Tweeter: | Compression Driver | Compression Driver | Compression Driver |
| Frequency Response: | 45 Hz - 20 kHz | 40Hz-20kHz | 35Hz-20kHz |
| Crossover Frequency: | 2.6 kHz | 2.6 kHz | 2.6 kHz |
| Peak SPL at 1m per pair: | 110dB/113dB | 110dB/113dB | 110dB/113dB |
| Amplifier Type: | Class D, Sigma DSP | Class D, Sigma DSP | Class D, Sigma DSP |
| Internal Resolution | Internal Resolution | Internal Resolution | |
| LF Power: | 125 W RMS | 125 W RMS | 125 W RMS |
| HF Power: | 80 W RMS | 80 W RMS | 80 W RMS |

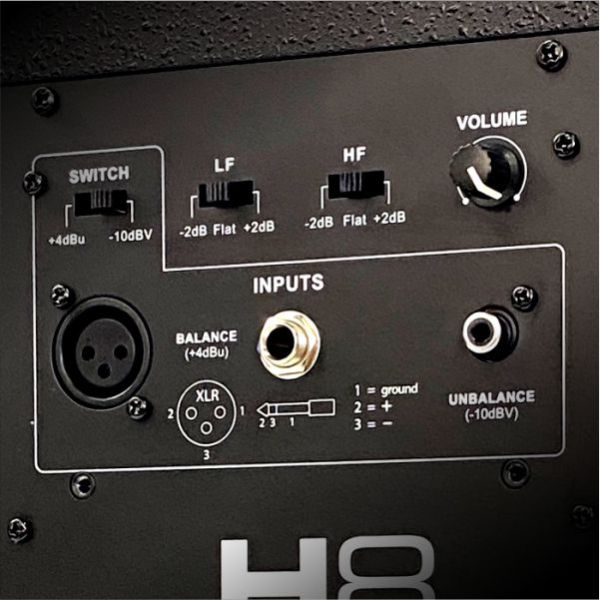

| Inputs: | XLR,TRS,RCA | XLR,TRS,RCA | XLR,TRS,RCA |
| Woofer Impedance: | 4 ohm | 4 ohm | 4 ohm |
| Tweeter Impedance: | 6 ohm | 6 ohm | 6 ohm |
| Input Sensitivity: | Switchable +4dBu / -10dBv | Switchable +4dBu / -10dBv | Switchable +4dBu / -10dBv |
| HF Trim Switch: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
| LF Trim Switch: | -2dB, Flat, +2dB | -2dB, Flat, +2dB | -2dB, Flat, +2dB |
| LED Indicators: | On Front | On Front | On Front |

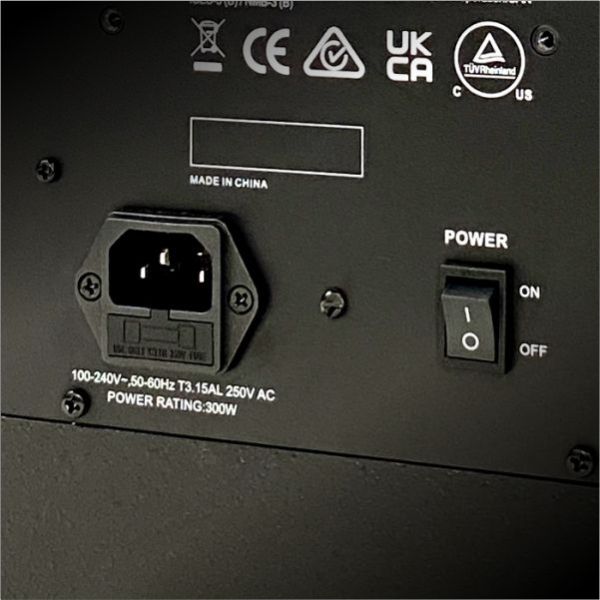

| Power Requirement: | 100-240VAC 50/60Hz | 100-240VAC 50/60Hz | 100-240VAC 50/60Hz |
| Cabinet: | Vinyl-laminated, High Acoustic Efficient MDF | Vinyl-laminated, High Acoustic Efficient MDF | Vinyl-laminated, High Acoustic Efficient MDF |
| Measurements: | W235xH354xD250mm | W268xH400xD300mm | W318xH475xD350mm |
