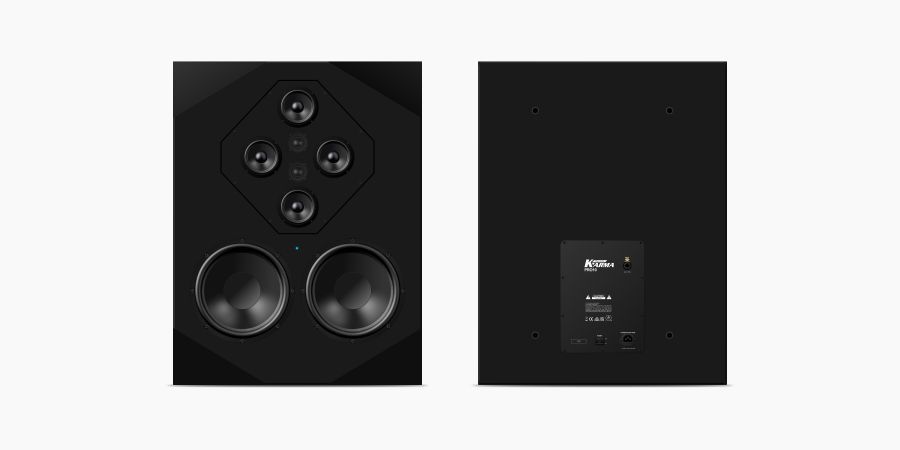

KARMA PRO10
Soffit Mount Studio Monitor
KARMA PRO10 as a Soffit Mount Studio Monitor, offering unparalleled accuracy and precision for sound engineers, producers, and musicians.
This mounting method eliminates unwanted reflections and resonances, providing an environment where critical listening can take place with utmost clarity and fidelity.
KARMA PRO10 is designed to deliver an exceptionally flat frequency response across the audible spectrum, ensuring that every nuance and detail of the audio signal is faithfully reproduced. It is engineered with advanced technologies such as high-quality drivers, precision-tuned enclosures, and sophisticated amplification systems to achieve sonic transparency and accuracy.
TECH SPECS
| KARMA PRO10 | |
| Description： | 3-Way Active Soffit Mount Monitor |

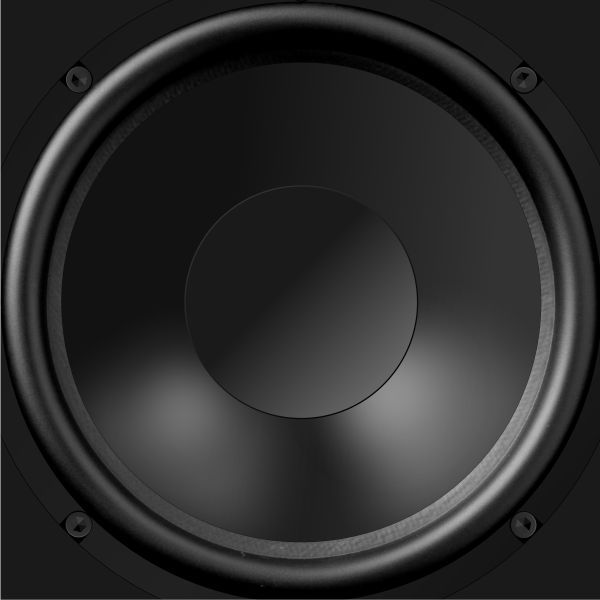

| LF Driver: | 10″x2 |
| MF Driver: | 4″x4 |

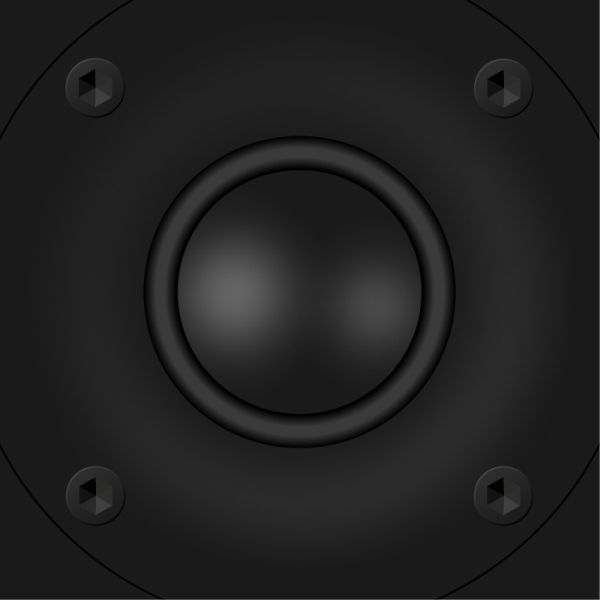

| HF Driver: | 1″x2 |
| Amplifier Type: | Class D, SigmaDSP Internal Resolution |
| LF Amplifier Power (RMS): | 200W x 2 |
| MF Amplifier Power: | 50W x 2 |
| HF Amplifier Power: | 50W x 2 |
| Frequency Response: | 33Hz-20kHz |
| Crossover Frequency: | 300Hz, 3kHz |

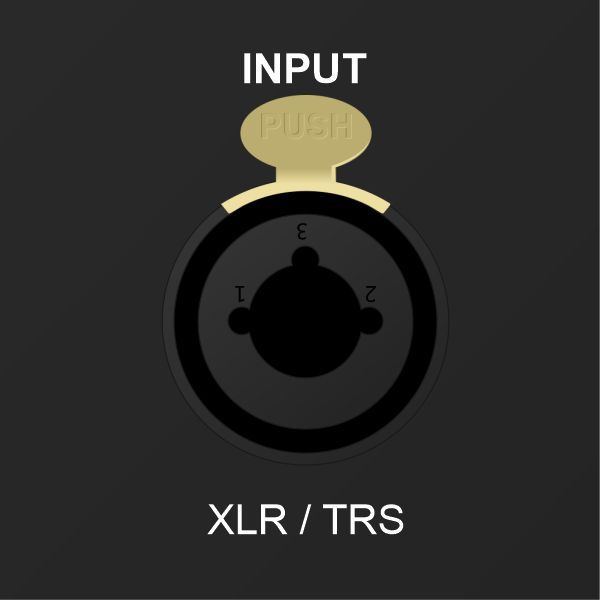

| Inputs: | XLR & TRS Combo Jack |
| Input Impedance: | 20KHz |
| Input Sensitivity: | 2V |

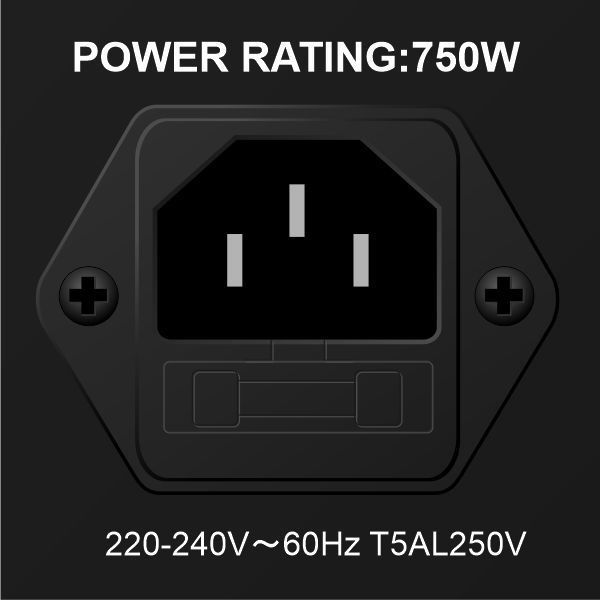

| Power Required: | 100-120VAC 60Hz or 220-240VAC 50Hz |
| Protection: | Undervoltage,Overtemperature, Clipping,and Short Circuit Protection |
| LED Indicators: | On front |
| Cabinet: | vinyl-laminated, high acoustic efficient MDF |
| Measurement: | W610xH810xD350mm |
