Studio Monitor
HOMEStudio MonitorDETAILS

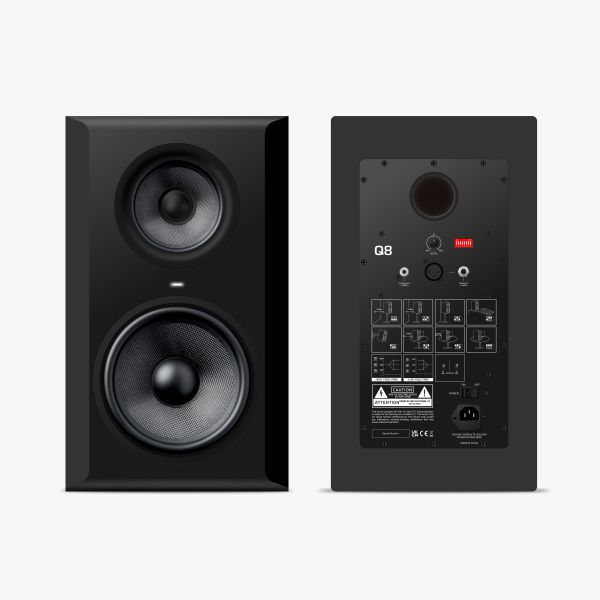

Q6 / Q8 / Q10
3-Way Active Coaxial Studio Monitor Speaker
Unlike anything you’ve ever heard, the three-way design lets both the woofer and the tweeter do less work, resulting in better headroom and lower distortion across the frequency spectrum.
At the same time, the coaxial architecture of the midrange and tweeter result in hyper-realistic imaging. This means that you’ll be able to hear subtle details in your mix with pinpoint precision.
The design of the system comes together to allow the Q-Series monitors to act as acoustic point sources. They enjoy all the benefits of both traditional 3-way systems and traditional coaxial speakers, with none of the drawbacks traditionally associated with either.
All of this make Q series extremely accurate and easy to mix on. You’ll be able to work faster and with more confidence, and your mixes are going to translate to other systems with less work.
TECH SPECS
| Q6 | Q8 | Q10 | |
| Description: | 3-Way Active Coaxial Studio Monitor Speaker | 3-Way Active Coaxial Studio Monitor Speaker | 3-Way Active Coaxial Studio Monitor Speaker |

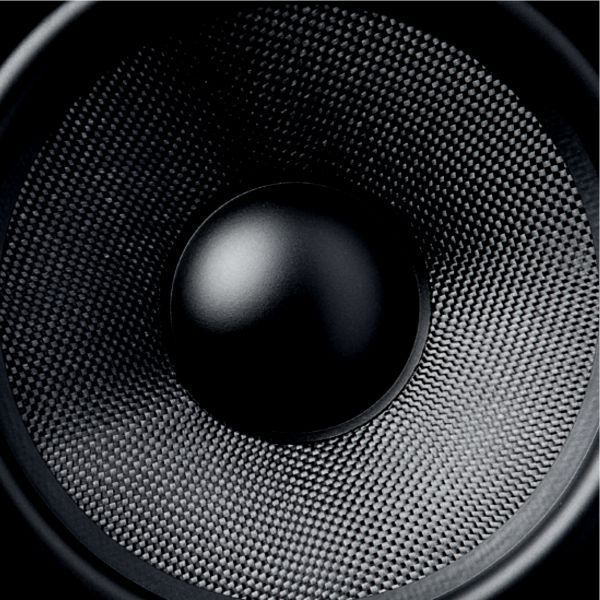

| LF Driver: | 6.5´´ | 8´´ | 10´´ |

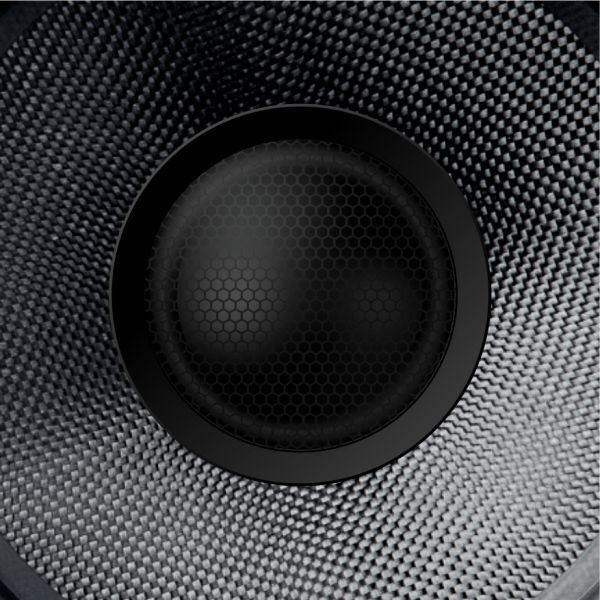

| MF Driver: | 5.25" | 5.25" | 5.25" |
| HF Driver: | 1´´ silk dome tweeter | 1´´ silk dome tweeter | 1´´ silk dome tweeter |
| Frequency Response: | 45Hz - 20 kHz | 40Hz - 20 kHz | 35 Hz - 20 kHz |
| Crossover Frequency: | Low-Mid: 450Hz, Mid-High: 3.9KHz | Low-Mid: 450Hz, Mid-High: 3.9KHz | Low-Mid: 450Hz, Mid-High: 3.9KHz |
| LF Power AMP: | 100W Class D | 100W Class D | 100W Class D |
| MF Power AMP: | 50W Class D | 50W Class D | 50W Class D |
| HF Power AMP: | 30W Class D | 30W Class D | 30W Class D |

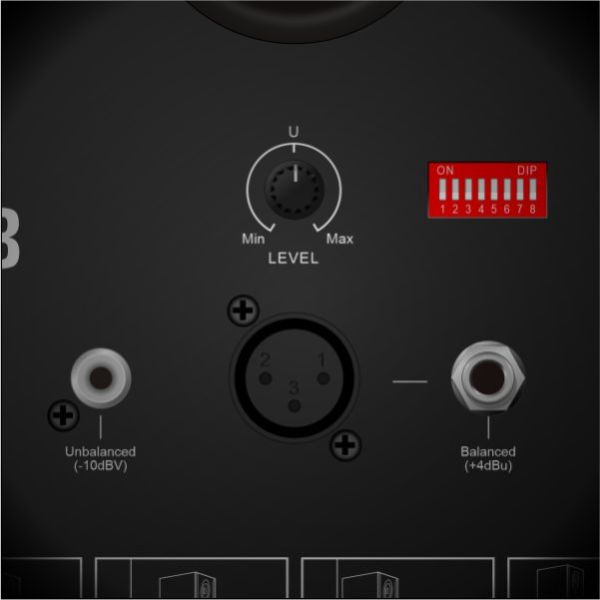

| Input connections: | 1 x XLR panel socket, 3-pin (balanced) | 1 x XLR panel socket, 3-pin (balanced) | 1 x XLR panel socket, 3-pin (balanced) |
| 1 x RCA socket (unbalanced) | 1 x RCA socket (unbalanced) | 1 x RCA socket (unbalanced) | |
| 1 x 1/4" jack socket (balanced) | 1 x 1/4" jack socket (balanced) | 1 x 1/4" jack socket (balanced) | |
| Input impedance: | 20kΩ (balanced), 10kΩ (unbalanced) | 20kΩ (balanced), 10kΩ (unbalanced) | 20kΩ (balanced), 10kΩ (unbalanced) |
| Input sensitivity: | 320 mV pink noise for 100 dB SPL in 1m distance (volume control @ 100%) | 320 mV pink noise for 106 dB SPL in 1m distance (volume control @ 100%) | 320 mV pink noise for 112 dB SPL in 1m distance (volume control @ 100%) |

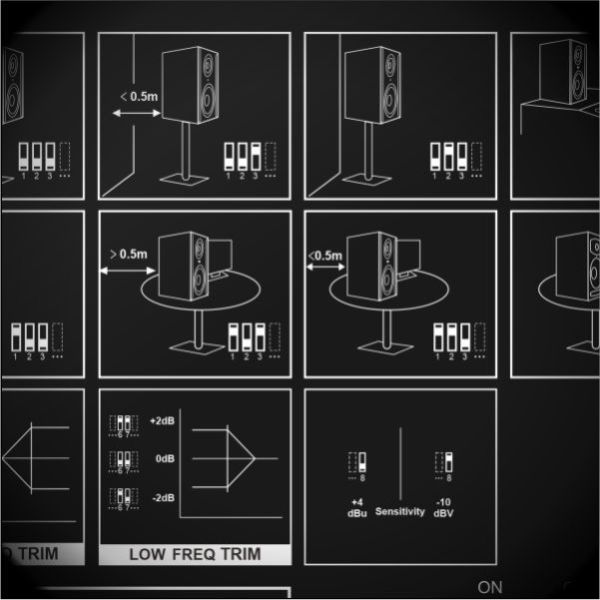

| EQ settings: | Free space (on stands, away from walls) | Free space (on stands, away from walls) | Free space (on stands, away from walls) |
| On stands, within 0.5 meters of a wall | On stands, within 0.5 meters of a wall | On stands, within 0.5 meters of a wall | |
| On stands, against a wall | On stands, against a wall | On stands, against a wall | |
| Meter Bridge | Meter Bridge | Meter Bridge | |
| Wall Mount | Wall Mount | Wall Mount | |
| On a desk, away from walls | On a desk, away from walls | On a desk, away from walls | |
| On a desk, within 0.5 meters of a wall | On a desk, within 0.5 meters of a wall | On a desk, within 0.5 meters of a wall | |
| On a desk, against a wall | On a desk, against a wall | On a desk, against a wall | |
| Ambient conditions: | Temperature range (0℃-40℃) | Temperature range (0℃-40℃) | Temperature range (0℃-40℃) |
| Relative humidity (20%-80%, non-condensing) | Relative humidity (20%-80%, non-condensing) | Relative humidity (20%-80%, non-condensing) | |
| Protection: | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse | Output current limiting; over-temperature; transient on/off protection to prevent speaker “pops”; subsonic filter; external mains fuse |

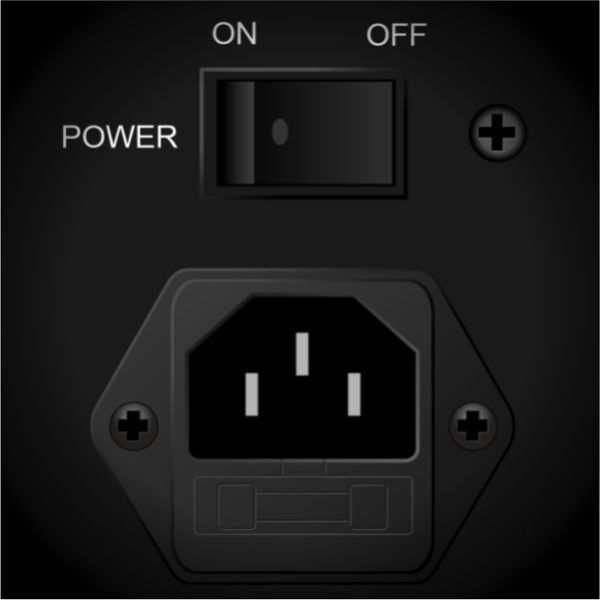

| Operating supply voltage: | 100--240V ~ 50/60Hz | 100--240V ~ 50/60Hz | 100--240V ~ 50/60Hz |
| Fuse: | 5mm × 20mm, 3.15A, 250V, slow blow | 5mm × 20mm, 3.15A, 250V, slow blow | 5mm × 20mm, 3.15A, 250V, slow blow |
