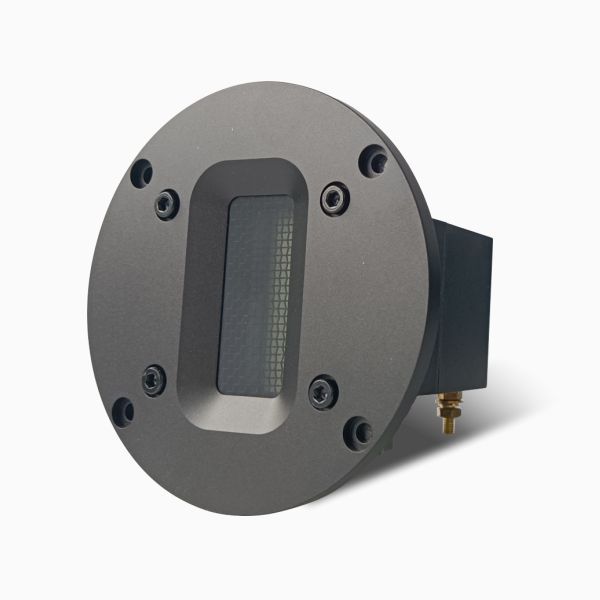

ART-6
True Aluminum Ribbon Tweeter
Super strong Neodymium magnets
Build-in impedance conversion transformer
Effective from 1,200Hz upwards due to the large diaphragm area and low self-resonance.

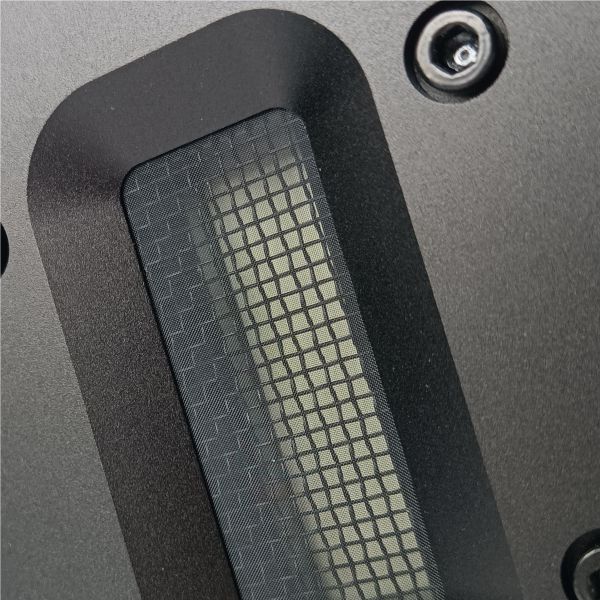

Thin enforced sandwich ribbon diaphragm guarantees a high degree of signal fidelity and broad frequency response.
Low distortion factor, good power-handling capabilities, high linear impedance and amplitude frequency response and the broad frequency response range.
Flat impedance from 1,200 to 40,000Hz
TECH SPECS
| Parameter | ART-6 |
| Sensitivity | 92dB±2.0dB |
| Power handling | 15W nominal, 30W max |
| Frequency range | 1,200-40,000Hz |
| Nominal impedance | 8Ω (+0/-20%) |
| DCR | 0.02 ohm |

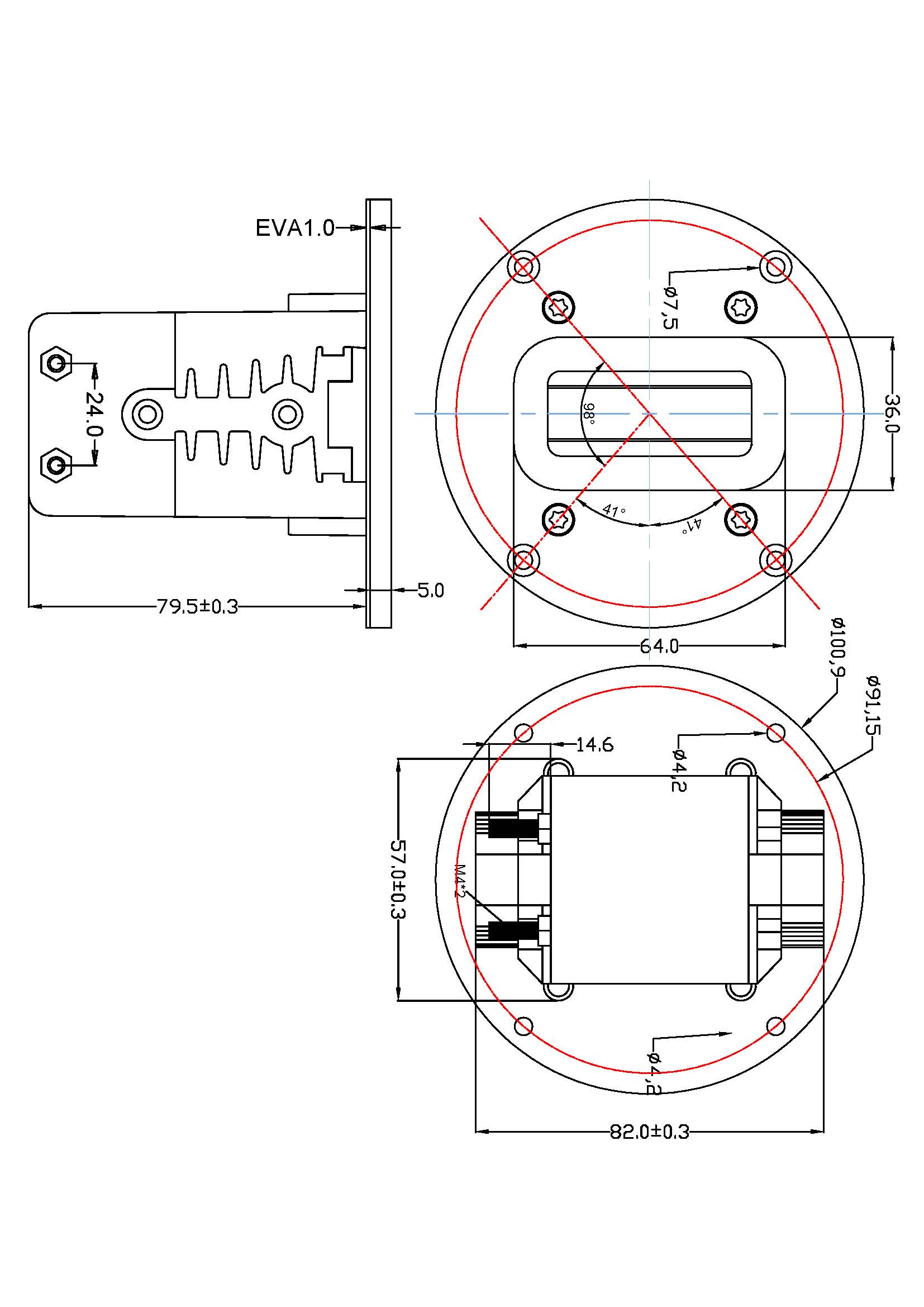

| Ribbon dimension | 12.5mmX46.5mmX0.015mm |
| Effective ribbon area | 581 square millimeter |
| Front Panel Material | Aluminum |
| Diaphragm Material | Alumium foil |
| Magnet Material | Neodymium |
| Recommended crossover | 2,500Hz with 2-order |
| Net. Weight | 700 gram |
