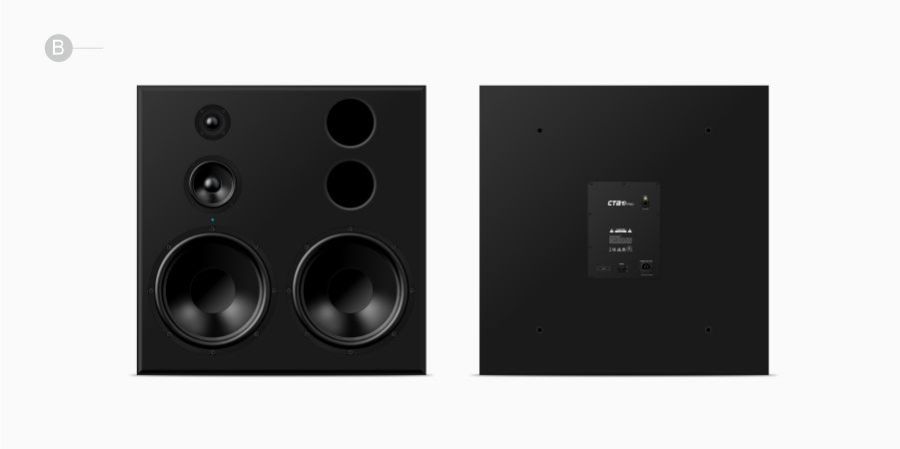

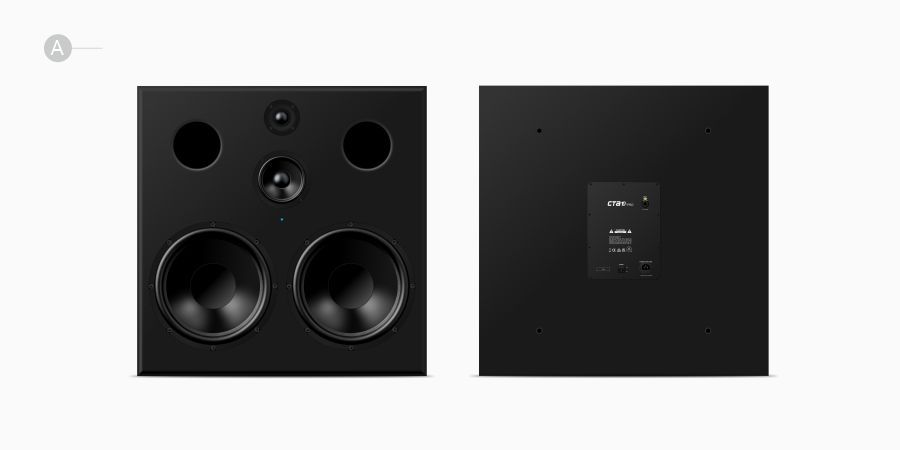

CTA10 PRO
Soffit Mount Studio Monitor
By seamlessly integrating into the wall or ceiling of a studio space, CTAPRO 10 provide a sleek and professional look while offering unparalleled sound quality. The direct mounting method eliminates the need for speaker stands, reducing clutter and maximizing floor space for other studio equipment. But it´s not just about aesthetics - soffit mount studio monitors also deliver exceptional audio performance. With reduced vibration and resonance, these monitors produce clear and accurate sound, allowing for precise monitoring and mixing.
Whether you´re a professional audio engineer, a musician, or a dedicated audiophile, CTAPRO 10 offer a top-of-the-line listening experience that will elevate your music production to new heights.
TECH SPECS
| CTA10 PRO | |
| Description: | 3-Way Active Soffit Mount Monitor |

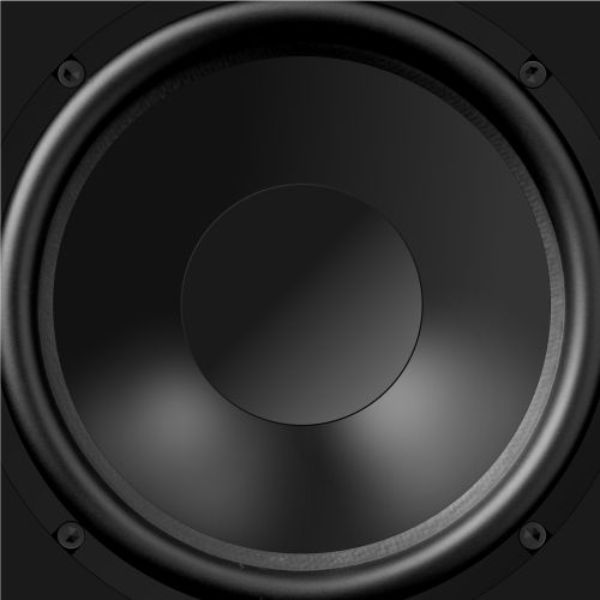

| LF Driver: | 10″ x 2 |
| MF Driver: | 6.5″ x 1 |

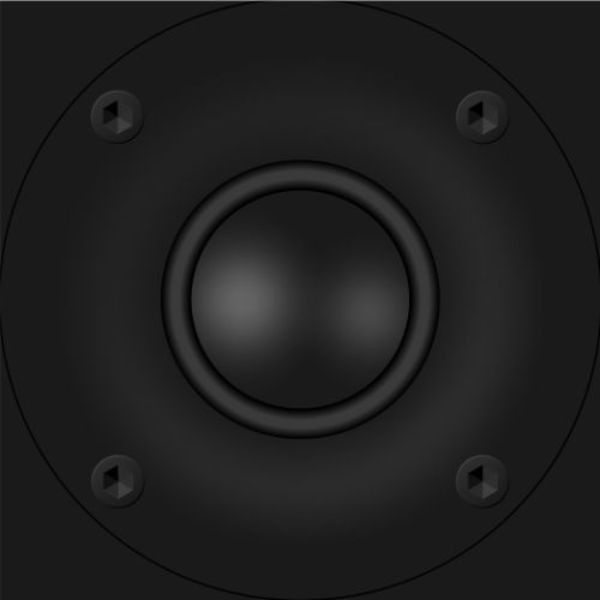

| HF Driver: | 1.5″ x 1 |
| Amplifier Type: | Class D, SigmaDSP Internal Resolution |
| LF Amplifier Power (RMS): | 2 x 200W |
| MF Amplifier Power: | 1 x 100W |
| HF Amplifier Power: | 1 x 50W |
| Frequency Response: | 33Hz-20kHz |
| Crossover Frequency: | 300Hz, 3kHz |

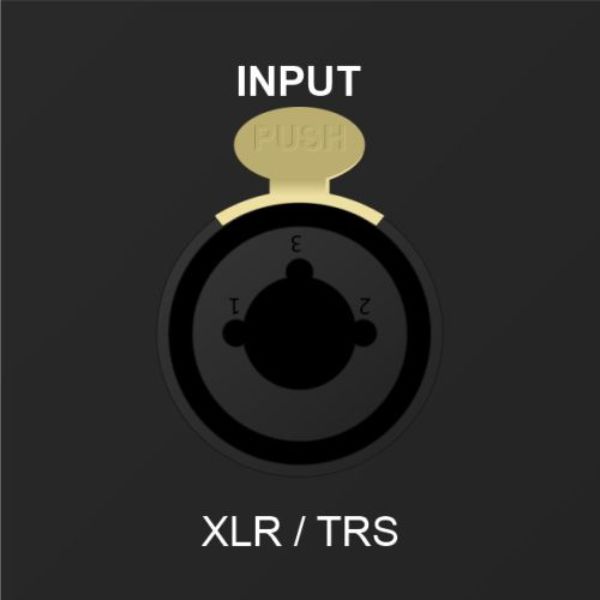

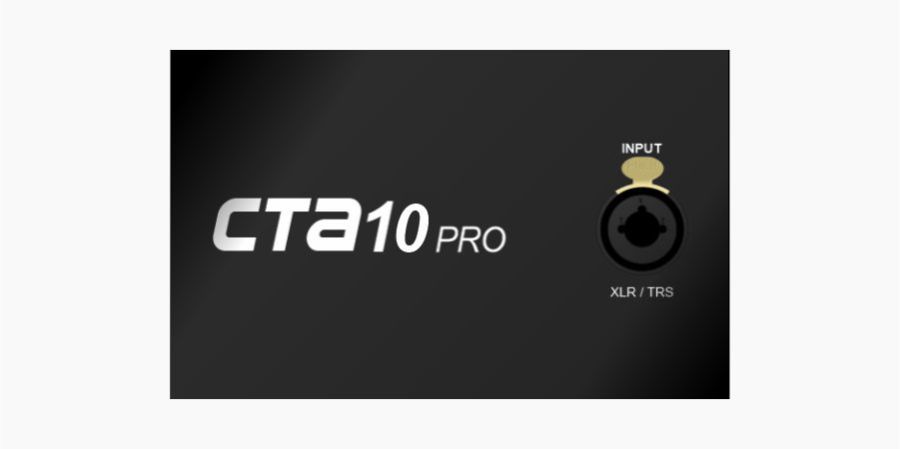

| Inputs: | XLR & TRS Combo Jack |
| Input Impedance: | 20KHz |
| Input Sensitivity: | 2V |

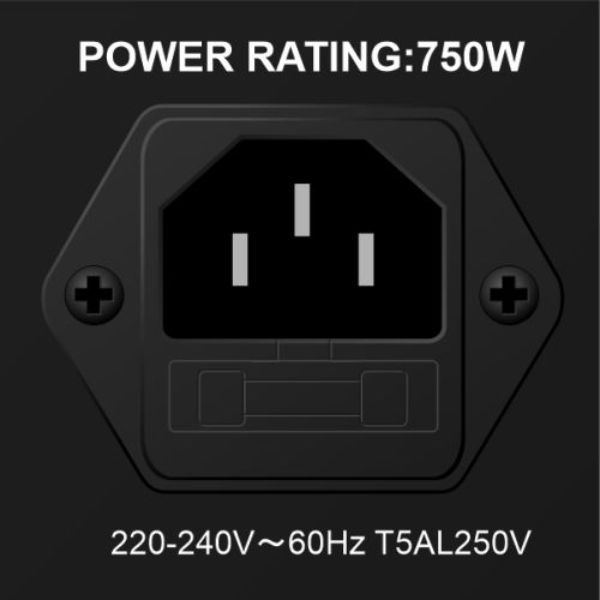

| Power Required: | 100-120VAC 60Hz or 220-240VAC 50Hz |
| Protection: | Undervoltage,Overtemperature, Clipping,and Short Circuit Protection |
| LED Indicators: | On front |
| Cabinet: | vinyl-laminated, high acoustic efficient MDF |
| Measurement: | W610xH610xD350mm |
